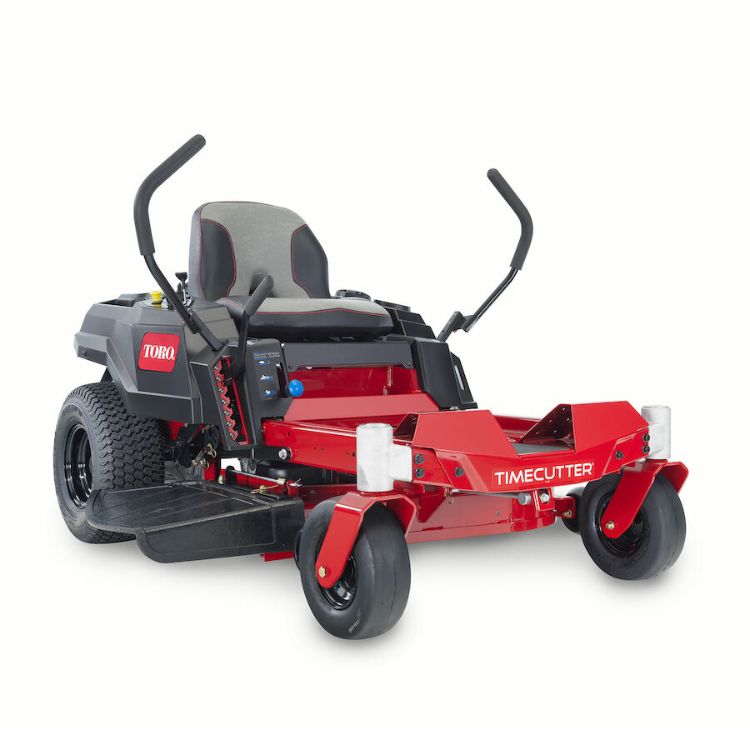

Toro 77301 34" Fabricated Deck TimeCutter w/ 22HP Briggs Engine

Toro
77301
  • Built to tackle big jobs while fitting in small spaces.
  • Built Like a Bull - IronForged® high strength grade 50, 10-gauge steel deck with bull nose reinforced leading edge.
  • Take control over your mowing speed, while never sacrificing blade tip speed.
  • Step-Through Front End - Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
  • Storage Cubby - Now there's a convenient and safe space in your under-seat cubby to store important items.
  • Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
  • Commercial DNA courses through these machines' veins with the same technology pros depend on.
  • Download the MyToro App from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more.
Price: $3,699.99
    On Order
    False

    Description

    Overview

    The ultimate zero-turn mower for tackling big lawn jobs while also fitting in small spaces. This small but mighty TimeCutter with powerful 22 HP* V-Twin Briggs & Stratton engine and 34" IronForged® deck allows you to create both a beautiful lawn and have more time than ever to enjoy it. The mower's compact design makes for easy storage. Toro stands behind its mowers with a 3-year, 300-hour commercial engine limited warranty."  And as a Toro owner you'll have access to more than 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

    Features

    Compact but Robust

    The mower's compact design and 34" deck means you'll have no trouble mowing in tight spaces or traveling between some gates.

    IronForged® Deck

    Toro IronForged® fabricated deck ensures years of reliability and top performance.

    Smart Speed® Technology

    Take control over your mowing speed, while never sacrificing blade tip speed.

    Step-Through Front End

    Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.

    Storage Cubby

    Now there's a convenient and safe space in your under-seat cubby to store important items.

    Handcrafted Seat

    Ride in style with a handcrafted seat that provides the ultimate in padding and back support.

    Pro DNA

    Commercial DNA courses through these machines' veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.

    Compatible with the MyToro App

    The MyToro app serves up essential product resources like manuals & service reminders, parts & maintenance kits, how-to videos, weather and more. To download please visit your mobile device's App Store.

    Specifications

    Brand:
    Toro
    Cutting Width:
    34"
    Engine Displacement:
    724cc
    Engine Size:
    22.0hp
    Engine Type:
    4-Stroke
    Fuel Capacity:
    3 gallon
    Mower Type:
    Rider, Zero Turn
    Oil Capacity:
    32 oz
    Power Source:
    Gasoline
    Starter Type:
    Electric Start

    More Specifications

    Air FilterStandard Briggs & Stratton Air Cleaner
    Anti Scalp Wheels2 Standard
    ArmrestsOptional
    Bagger Capacity4.9 bushels
    Blade Design0.164 in. / 0.417 cm Steel with Blade Stiffner
    Blade Tip Speed18,179 ft/min / 5,541 m/min
    CARB CompliantNot CARB Compliant
    Caster Tires11 in. x 4 in. - 5 in. Pneumatic
    ClutchElectromagnetic
    Cooling SystemAir Cooled
    Crankshaft1" (25 mm) w/Steel Protector
    Cup HolderStandard
    Cutter SystemSteel Cutting Blade
    Cutting Width34 in / 86 cm
    Deck Design10-Gauge steel IrongForged
    Deck Material10 Gauge Steel
    Discharge ChuteSide
    Drive SystemHYDRO
    Drive Tires18 in. x 6 in. - 8 in. (45.7 cm x 15.2 cm - 20.3 cm)
    Drive TypeRear-Wheel Drive
    Engine22 hp Briggs and Stratton EXI 724cc
    Engine BrandBriggs and Stratton
    Engine Displacement (cc)724 cc
    Engine Horsepower22.0 hp
    Engine Power (kW)16.4 kW
    Foot Operated Height of CutOptional
    Forward Ground/Transport SpeedUp to 7.0 mph / 11.2 kph
    Forward Mowing SpeedUp to 7.0 mph / 11.2 kph
    Fuel Capacity3 gal. / 11.4 L / 12 Qt.
    Fuel TypeGasoline
    Greasable BearingsYes
    Height of Cut1.5 - 4.5 in. / 3.8 - 11.4 cm
    Hitch BracketStandard
    Hour MeterOptional
    Hydraulic DampenersYes, Non-Cavitating
    Hydraulic DriveStandard
    Number of Blades2
    Product UseResidential
    Recommended Oil Type10W-30
    Roll-Over Protection (ROPS)Optional
    Seat16" Handcrafted
    Spindle BearingsMaintenance-free
    Spindle HousingCast-Aluminum
    Start TypeElectric
    Steering ControlsDual Wrap Around Levers
    Steering DampenersStandard Dampers
    Terrain TypeFlat with Obstacles
    Tow CapacityCombined machine, user, towed weight may not exceed 1,000 lbs.
    TransmissionDual Hydrostatic HG-EZT2100
    Washout PortStandard

    Disclaimer

    *22 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Briggs & Stratton. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.See retailer for complete warranty details.Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
