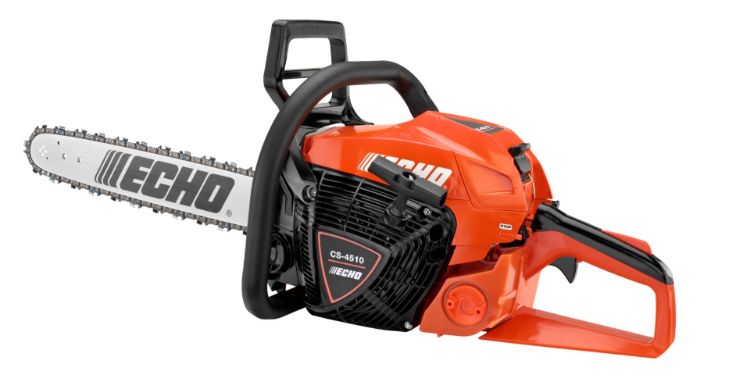

The ECHO CS-4510-16 is a versatile mid-size gas chainsaw designed to deliver dependable cutting performance for a variety of property maintenance and woodcutting tasks. Powered by a 45.0cc professional-grade, 2-stroke engine and equipped with a 16-inch bar and chain, it offers a practical combination of power, maneuverability and cutting capacity.

Built with user convenience in mind, the CS-4510 features ECHO's spring-assist starting system to help reduce starting effort, along with an automatic, adjustable oiler for consistent bar and chain lubrication. Its rear-handle configuration provides comfortable control during limbing, storm cleanup, firewood cutting and other general-purpose applications. With durable construction and thoughtful features throughout, the CS-4510-16 is a capable choice for homeowners and property owners looking for reliable gas-powered cutting performance.

Description

Key Features

45.0cc professional-grade, 2-stroke engine — Delivers dependable power and performance for a variety of cutting applications
16-inch bar and chain — Provides a versatile cutting setup for firewood, storm cleanup, limbing and general property maintenance
Spring-assist starting system — Reduces the effort required to start the saw
G-Force Engine Air Pre-Cleaner — Helps reduce debris reaching the air filter for longer filter life and reduced maintenance
Automatic, adjustable clutch-driven oiler — Supplies lubrication to the bar and chain while allowing oil flow adjustment for different cutting conditions
Side-access chain tensioner — Makes routine chain adjustments quick and convenient
Tool-less air filter access — Simplifies inspection, cleaning and routine maintenance
Decompression valve — Helps reduce starting effort
Rear-handle design — Provides comfortable control for general-purpose cutting applications
Inertia-type chain brake — Helps provide additional operator protection during use

Specifications

Brand:	ECHO
Bar Length:	16"
Chain Pitch:	13/40"
Engine Displacement:	45.0cc
Engine Type:	2-Stroke
Fuel Capacity:	0.13 gallon
Handle Type:	Rear Handle
Oil Capacity:	11.2 oz
Power Source:	Gasoline
Starter Type:	Recoil Start

More Specifications

Specification	Details
Model	CS-4510-16
Power Source	Gasoline
Engine Type	Air-Cooled, 2-Stroke, Single-Cylinder
Engine Displacement	45.0cc (2.75 cu. in.)
Bar Length	16 in.
Saw Chain	20BPX
Starting System	Spring-Assist
Ignition System	Digital
Handle Type	Rear Handle
Oiling System	Automatic, Adjustable
Fuel Capacity	16.2 fl. oz.
Oil Capacity	11.1 fl. oz.
Fuel/Oil Ratio	50:1
Sprocket Type	Spur
Bar Type	Laminated
Chain Tensioner	Side Access
Dry Weight	11.1 lbs.*
Warranty	5-Year Consumer / 1-Year Commercial**

* Dry weight may exclude the guide bar, chain, fuel and oil.
** Warranty applies to qualifying consumer and commercial use; see ECHO warranty terms for details.

Replaces

Fits These Models

Additional Information

Product Questions

Customer Questions

ECHO CS-4510-16 16" 45.0cc Mid-Size Rear Handle Gas Chainsaw currently has 0 product question(s).

Reviews

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

ECHO CS-4510-16 16" 45.0cc Mid-Size Rear Handle Gas Chainsaw

ECHO

CS-4510-16

Price: $388.99

On Order Ships to lower 48 United States In-store pickup/local delivery available

Free shipping (lower 48 states only)

This is a genuine ECHO & Shindaiwa product. RCPW is a Signature Elite ECHO & Shindaiwa dealer.
