Description

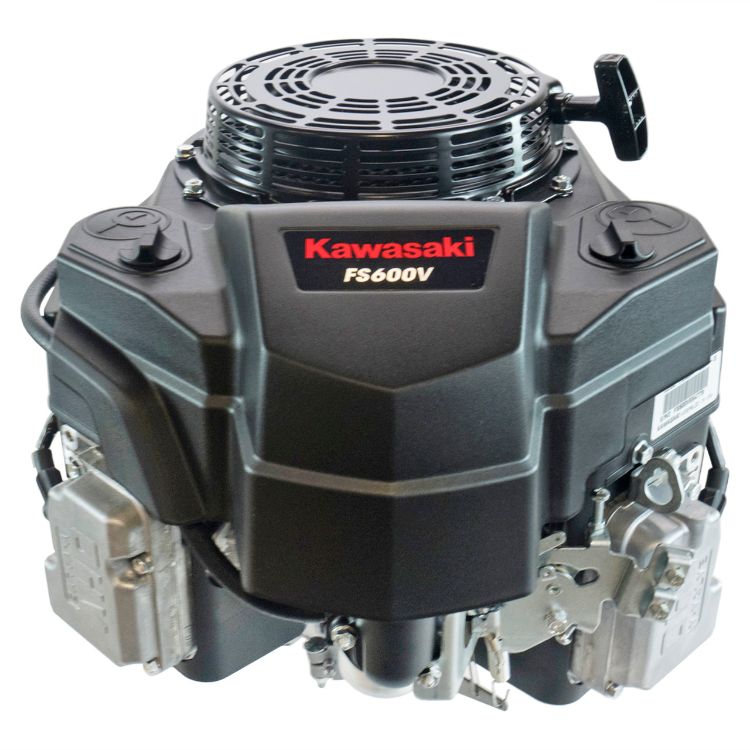

The FS600V engine delivers reliable power with low noise and emissions. This high performance 90 degree V-twin engine features a dual element air filter and rotating grass screen. It's the perfect powerhouse engine for lawn tractors, zero-turn riders and wide-area walk-behind mowers.

  • Dual element air filtration system with reinforced primary filter
  • Does not include muffler
  • 15 amp charging coil
  • Electronic spark ignition
  • Overhead V-valve
  • Pressurized lubrication system
  • Automatic compression release
  • Internally vented carburetor
  • Rotating grass chopper screen
  • Cast-iron cylinder liners

Specifications

Brand:
Kawasaki
Crankshaft Diameter:
1"
Crankshaft Length:
3-5/32"
Engine Displacement:
603cc
Engine Size:
18.5hp
Engine Type:
4-Stroke
Item Type:
Vertical Engine
Starter Type:
Recoil Start

More Specifications

Displacement603 cc (36.8 cu. in.)
Number of Cylinders2
Bore x Stroke2.9 in. x 2.8 in. (73mm x 72mm)
Compression Ratio8.1:1
Oil Capacity w/ Filter1.8 U.S. qt (1.7 liters)
Maximum Power18.5 hp (13.8 kW) at 3,600 RPM
Maximum Torque32.3 ft-lbs (43.8 Nm) at 2,200 RPM
Dry Weight80.9 lbs (36.7 kg)
Alternator13 amp
Warranty3-Year Engine Manufacturer Warranty

Replaces

{"Kawasaki":["FS600V-FS01S","FS600V-FS01-S","FS600V-GS01-S"]}

Fits These Models

Additional Information

Product Questions

Customer Questions
Kawasaki FS600V-S01S 600cc 1" x 3-5/32" 18.5hp Recoil Start Standard Engine without Muffler currently has 0 product question(s).

Reviews

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Kawasaki FS600V-S01S 600cc 1" x 3-5/32" 18.5hp Recoil Start Standard Engine without Muffler

Kawasaki
FS600V-S01S
Price: $1,789.00

    This is a genuine Kawasaki Engines product. RCPW is an authorized Kawasaki Engines dealer.
