Description

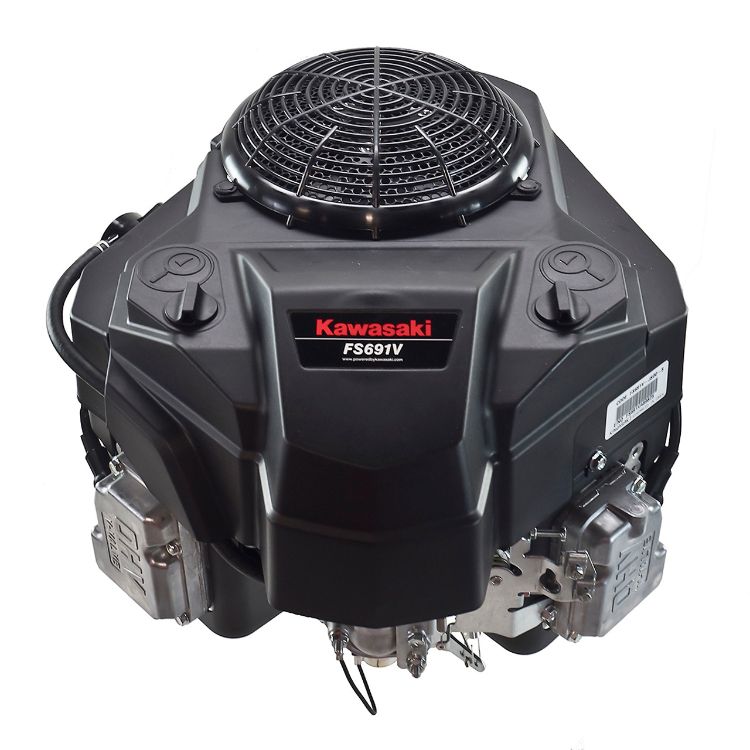

Designed for tough work in tight spaces, the 90 degree V-twin 4-cycle Kawasaki FS691V engine can help turn your zero-turn mower or lawn tractor into an impressive force of landscaping precision. Featuring a rotating grass screen and dual-element reinforced air filter, pressurized lubrication system, and cast-iron cylinder liners, this engine helps provide peak productivity.
  • Heavy duty air filter included
  • Does not include muffler
  • 15 amp charging coil
  • Fuel shut off solenoid
  • Electric start
  • Cast Iron Cylinder Liner
  • Separate Choke and Throttle Controls

Specifications

Brand:
Kawasaki
Crankshaft Diameter:
1-1/8"
Crankshaft Length:
4-9/32"
Engine Displacement:
726cc
Engine Size:
23hp
Engine Type:
4-Stroke
Item Type:
Vertical Engine
Starter Type:
Electric Start

More Specifications

Displacement726 cc (44.3 cu. in.)
Number of Cylinders2
Bore x Stroke3.1 in. x 3.0 in. (78mm x 76mm)
Compression Ratio8.2:1
Oil Capacity w/ Filter2.1 U.S. qt (2.0 liters)
Maximum Power23.0 hp (17.2 kW) at 3,600 RPM
Maximum Torque39.6 ft-lbs (53.6 Nm) at 2,200 RPM
Dry Weight90.4 lbs (41.0 kg)
Alternator15 amp
Warranty3-Year Engine Manufacturer Warranty

Replaces

Fits These Models

Additional Information

Product Questions

Customer Questions
Kawasaki FS691V-S00S 691cc 1-1/8" x 4-9/32" 23hp Engine without Muffler currently has 0 product question(s).

Reviews

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Kawasaki FS691V-S00S 691cc 1-1/8" x 4-9/32" 23hp Engine without Muffler

Kawasaki
FS691V-S00S
Price: $2,070.00

    This is a genuine Kawasaki Engines product. RCPW is an authorized Kawasaki Engines dealer.
