Description

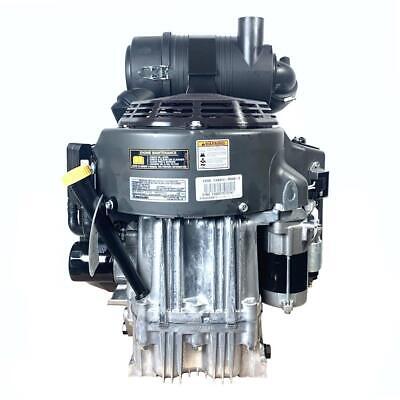

When serious work calls for serious power, the Kawasaki FX801V engine dials up the delivery for top-of-the-line strength and dependable durability. This V-twin 4-cycle vertical shaft engine features cast-iron cylinders, metal engine cover, heavy-duty shift-type starter, and high-efficiency oil cooler for performance that powers through.
  • Multi-stage canister air filter included
  • Does not include muffler
  • 15 amp charging coil included
  • Fuel pump included
  • Electric starter
  • Overhead v-valve
  • 90 degree V-twin
  • Pressurized lubrication system
  • Automatic compression release
  • Rotating metal grass chopper screen
  • Cast iron cylinder liners
  • Metal engine cover with integrated clean out ports

Specifications

Brand:
Kawasaki
Crankshaft Diameter:
1-1/8"
Crankshaft Length:
4-9/32"
Engine Displacement:
852cc
Engine Size:
25.5hp
Engine Type:
4-Stroke
Item Type:
Vertical Engine
Starter Type:
Electric Start

More Specifications

Displacement852 cc (52.0 cu. in.)
Number of Cylinders2
MountingVertical
Bore x Stroke3.33 in. x 2.99 in. (84.5mm x 76mm)
Compression Ratio8.2:1
Oil Capacity w/ Filter2.4 U.S. qt (2.3 liters)
Maximum Power25.5 hp (19.0 kW) at 3,600 RPM
Maximum Torque45.8 ft-lbs (62.0 Nm) at 2,200 RPM
Dry Weight124.0 lbs (56.4 kgs)
Warranty3-Year Engine Manufacturer Warranty

Replaces

{"Kawasaki":["FX801V-MS00S"]}

Fits These Models

Additional Information

Product Questions

Customer Questions
Kawasaki FX801V-S00S 801cc 1-1/8" x 4-9/32" 25.5hp Engine w/ Canister Air Filter currently has 0 product question(s).

Reviews

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Kawasaki FX801V-S00S 801cc 1-1/8" x 4-9/32" 25.5hp Engine w/ Canister Air Filter

Kawasaki
FX801V-S00S
Price: $2,480.00

    This is a genuine Kawasaki Engines product. RCPW is an authorized Kawasaki Engines dealer.
