Description

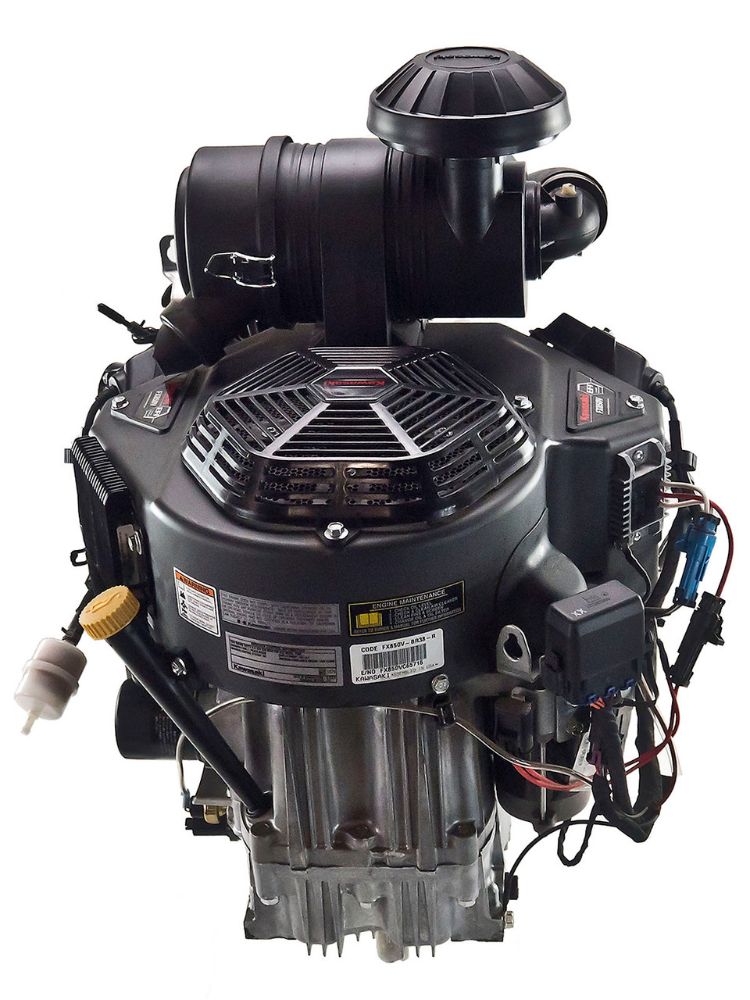

Power and precision team up to tackle the toughest jobs in the V-twin 4-cycle Kawasaki FX850V engine. With serious torque on tap, this engine features a heavy-duty shift-type starter and twin-barrel, internally vented carburetor with fuel shut-off solenoid. Plus, cast-iron cylinder liners and a metal engine cover with integrated clean-out ports contribute to trusted durability and reliable longevity.

  • Heavy duty air canister included
  • Does not include muffler
  • 30 amp charging coil included
  • Pulse type fuel pump included
  • Oil filter & cooler included
  • Electric shift type starter
  • V-twin
  • Vertical PTO shaft
  • Cast iron cylinder liner
  • Overhead v-valve
  • Internally vented carburetor with fuel shut-off solenoid
  • Full pressure lubrication system
  • Automatic compression release system

Specifications

Brand:
Kawasaki
Crankshaft Diameter:
1-1/8"
Crankshaft Length:
4-9/32"
Engine Displacement:
852cc
Engine Size:
29hp
Engine Type:
4-Stroke
Item Type:
Vertical Engine
Starter Type:
Electric Start

More Specifications

Displacement852 cc (52.0 cu. in.)
Number of Cylinders2
MountingVertical
Bore x Stroke3.33 in. x 2.99 in. (84.5 mm x 76 mm)
Compression Ratio8.2:1
Oil Capacity w/ Filter2.4 U.S. qt (2.3 liters)
Maximum Power27.0 hp (20.1 kW) at 3,600 RPM
Maximum Torque45.6 ft-lbs (61.8 Nm) at 2,400 RPM
Dry Weight124.0 lbs (56.4 kgs)
Warranty3-Year Warranty

Replaces

{"Kawasaki":["FX850V-BR31-S"]}

Fits These Models

Additional Information

Product Questions

Customer Questions
Kawasaki FX850V-R31S 850cc 1-1/8" x 4-9/32" 29hp Engine w/ Canister Air Filter currently has 0 product question(s).

Reviews

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Kawasaki FX850V-R31S 850cc 1-1/8" x 4-9/32" 29hp Engine w/ Canister Air Filter

Kawasaki
FX850V-R31S
Price: $2,854.00

    This is a genuine Kawasaki Engines product. RCPW is an authorized Kawasaki Engines dealer.
